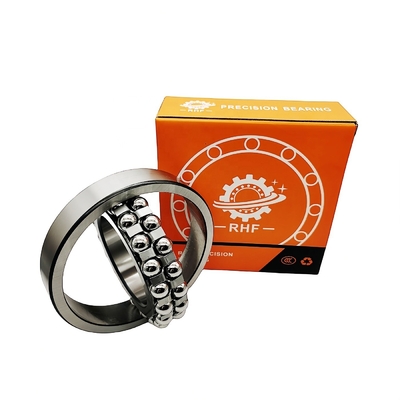

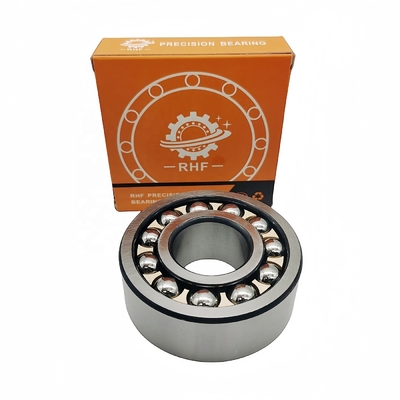

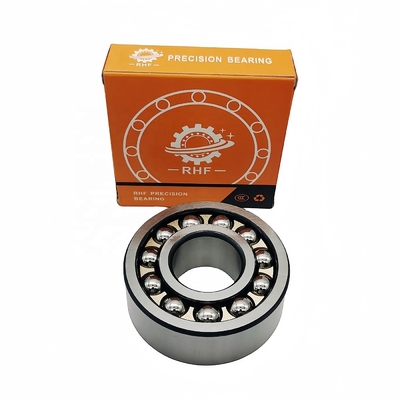

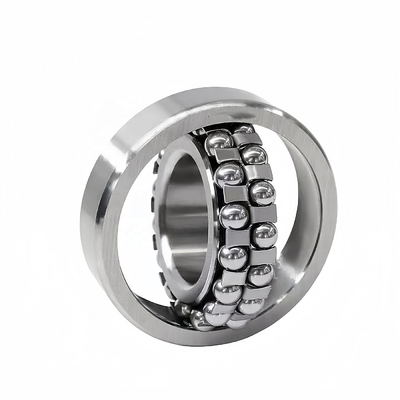

OPEN Seals Type 30*62*16mm Self-aligning Ball Bearing 11206 made of Chrome Steel GCr15

I'm Online Chat Now

OPEN Seals Type 30*62*16mm Self-aligning Ball Bearing 11206 made of Chrome Steel GCr15

OPEN Seals Type 30*62*16mm Self-aligning Ball Bearing 11206 made of Chrome Steel GCr15
OPEN Seals Type 30*62*16mm Self-aligning Ball Bearing 11206 made of Chrome Steel GCr15 OPEN Seals Type 30*62*16mm Self-aligning Ball Bearing 11206 made of Chrome Steel GCr15 OPEN Seals Type 30*62*16mm Self-aligning Ball Bearing 11206 made of Chrome Steel GCr15 OPEN Seals Type 30*62*16mm Self-aligning Ball Bearing 11206 made of Chrome Steel GCr15 OPEN Seals Type 30*62*16mm Self-aligning Ball Bearing 11206 made of Chrome Steel GCr15 OPEN Seals Type 30*62*16mm Self-aligning Ball Bearing 11206 made of Chrome Steel GCr15

Large Image :  OPEN Seals Type 30*62*16mm Self-aligning Ball Bearing 11206 made of Chrome Steel GCr15

Product Details:
Place of Origin: Shandong, China
Brand Name: RHF
Model Number: 11206
Payment & Shipping Terms:
Minimum Order Quantity: 2 sets
Price: $4.85/sets 2-99 sets

OPEN Seals Type 30*62*16mm Self-aligning Ball Bearing 11206 made of Chrome Steel GCr15

Description
Type: Roller, Ball Structure: Spherical
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Construction Works , Energy & Mining, Other Precision Rating: P0 P2 P4 P5 P6
Seals Type: OPEN Number Of Row: Double Row, Double
Material: Chrome Steel GCr15 Cage Material: Steel/ Copper/ Nylon
Lubrication: Grease Or Oil Lubricated Feature: Long Life Low Noise
Service: OEM Customized Services Size: Standard Size
Weight: 0.35kg Warranty: 1 Year

Product Description
Features
In a self-aligning bearing, the inner ring has two raceways and the outer ring has a single spherical raceway with its center of curvature coincident with the bearing axis. Self-Aligning Double Row Ball Bearings are designed to work in applications where severe misalignment exists whether from mounting or shaft deflection. The concave raceway of the outer ring in combination with two rows of balls operate over a wide range of contact angles.
OPEN Seals Type 30*62*16mm Self-aligning Ball Bearing 11206 made of Chrome Steel GCr15 0
OPEN Seals Type 30*62*16mm Self-aligning Ball Bearing 11206 made of Chrome Steel GCr15 1
OPEN Seals Type 30*62*16mm Self-aligning Ball Bearing 11206 made of Chrome Steel GCr15 2
OPEN Seals Type 30*62*16mm Self-aligning Ball Bearing 11206 made of Chrome Steel GCr15 3
OPEN Seals Type 30*62*16mm Self-aligning Ball Bearing 11206 made of Chrome Steel GCr15 4
OPEN Seals Type 30*62*16mm Self-aligning Ball Bearing 11206 made of Chrome Steel GCr15 5
Product Name
Self-aligning Ball Bearing
Model NO.
11206
Type
Ball Bearing
Seal Type
OPEN
Material
Chrome Steel GCr15
Service
OEM Customized Service
Packing
1.Single wooden case+Pallet
2.Plastic Sleeve Packing+Carton+Pallet
3.Single Box+Cartons+Pallet
4.As customer request
Product Parameters for Reference
Dimensions(mm)
Basic Load Rating(kn)
Speed(r/min)
Weight(kg)
Model
d
D
B
dynamic
static
reference
reference
20
47
14
12.7
3.4
9000
0.18
11204ETN9
25
52
15
14.3
4
8000
0.22
11205ETN9
30
62
16
15.6
4.65
6700
0.35
11206TN9
35
72
17
15.9
5.1
5600
0.54
11207TN9
40
80
18
19
6.55
5000
0.72
11208TN9
45
85
19
21.6
7.35
4500
0.77
11209TN9
50
90
20
22.9
8.15
4300
0.85
11210TN9
60
110
22
30.2
11.6
3400
1.15
11212TN9
eCage Material Types: Iron Cage/ M Brass Cage/ TN-9 Nylon Cage
OPEN Seals Type 30*62*16mm Self-aligning Ball Bearing 11206 made of Chrome Steel GCr15 6
OPEN Seals Type 30*62*16mm Self-aligning Ball Bearing 11206 made of Chrome Steel GCr15 7
OPEN Seals Type 30*62*16mm Self-aligning Ball Bearing 11206 made of Chrome Steel GCr15 8
OPEN Seals Type 30*62*16mm Self-aligning Ball Bearing 11206 made of Chrome Steel GCr15 9
OPEN Seals Type 30*62*16mm Self-aligning Ball Bearing 11206 made of Chrome Steel GCr15 10
FAQ Q:Are you trading company or manufacturer? --We are the company dealing in trading business and manufacturing business. Q:What’s the MOQ? --There is no MOQ for sample orders. It's generally 300pcs for custom products and can be negotiated according to the unit price of the product. Q:How long is the lead time? --Generally, the lead time for sample orders is 1-3 days, for bulk orders is in 3-15 days. It’s depends on the quantity of the order. Q:Do you offer free samples? --If you place an order, we can return part of sample fee even all of fee to you. It also depends on the quantity of order and the type of sample. And you just need to pay freight. Q: Could you customized for me? --Sure,we can supply OEM service as per your drawing or samples.
