Double Direction Ball Bearing RHF 154026mm 52204 with Grease or Oil Lubrication

Large Image : Double Direction Ball Bearing RHF 15*40*26mm 52204 with Grease or Oil Lubrication

Product Details:

Place of Origin:	Shandong, China
Brand Name:	RHF
Model Number:	52204

Payment & Shipping Terms:

Minimum Order Quantity:	100 sets
Price:	$7.89/sets 100-999 sets
Packaging Details:	1.Single wooden case+Pallet<br>2.Plastic Sleeve Packing+Carton+Pallet<br>3.Single Box+Cartons+Pallet<br>4.As customer request

Contact Now

Double Direction Ball Bearing RHF 154026mm 52204 with Grease or Oil Lubrication

Description

Type:	BALL, Ball	Structure:	Thrust, Thrust
Applicable Industries:	Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Construction Works , Energy & Mining, Other	Precision Rating:	P0 P2 P4 P5 P6
Seals Type:	Open	Number Of Row:	Single Row
Material:	Chrome Steel GCr15	Cage Material:	Steel/ Copper/ Nylon
Lubrication:	Grease Or Oil Lubricated	Size:	154026mm
Weight:	0.15kg	Service:	Grease Or Oil Lubricated
Feature:	Long Life Low Noise	Warranty:	1 Year

Product Description

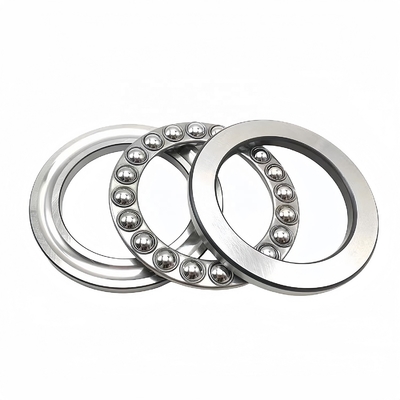

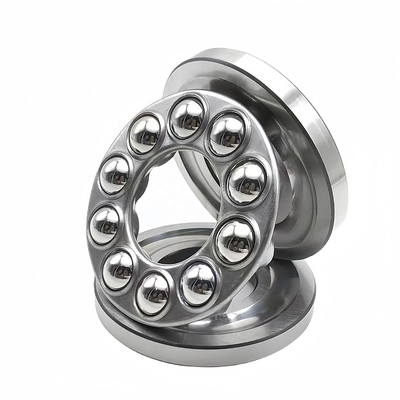

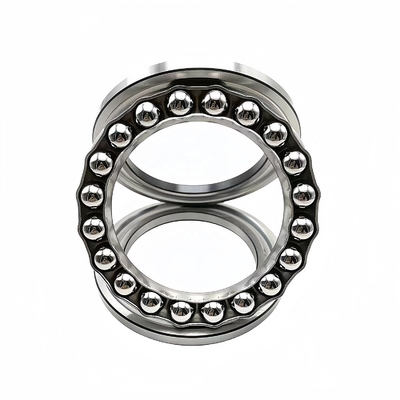

The unidirectional thrust ball bearing comprises a shaft ring, a seat ring and a ball-cage assembly. It can be separated and the shaft ring, seat ring, ball-cage assembly can be installed separately. Unidirectional thrust ball bearings can withstand the axial load in a single direction and can be positioned in a single direction, but must not bear any radial load.

Product Parameters

Dimensions(mm)					Basic Load Rating(kn)			Speed(r/min)	Weight(kg)	Model
d	D	B	dynamic	static	reference	reference				Model
10	32	22	16.5	27	7000	0.081	52202
15	40	26	22.5	40.5	6000	0.15	52204
20	47	28	27.6	55	5300	0.22	52205
		52	34	34.5	60	4500	0.33	52305
		70	52	72.8	137	3600	1	52406
25	52	29	25.5	51	4800	0.25	52206
		60	38	37.7	71	3800	0.47	52306
		80	59	87.1	170	3000	1.45	52407
30	62	34	35.1	73.5	4000	0.41	52207
		68	36	46.8	106	3800	0.55	52208
		68	44	49.4	96.5	3400	0.68	52307
		78	49	61.8	122	3000	1.05	52308
		90	65	112	224	2400	2.05	52408
35	73	37	39	86.5	3600	0.6	52209
		85	52	76.1	153	2800	1.25	52309
		100	72	130	265	2200	2.7	52409
40	78	39	49.4	116	3400	0.71	52210
40		95	58	88.4	190	2600	1.75	52310
45	90	45	61.8	146	2800	1.1	52211
		105	64	104	224	2200	2.4	52311
		120	87	178	390	1800	4.7	52411
50	95	46	62.4	150	2200	1.2	52212
		110	64	101	224	1600	2.55	52312
		130	93	199	430	1600	6.35	52412M
55	100	47	63.7	163	2600	1.35	52213
		105	47	65	173	2600	1.5	52214
		115	65	106	240	2000	2.75	52313
		125	72	135	320	1900	3.65	52314
		150	107	234	550	1400	9.7	52414M
