51100 Single Row Thrust Ball Bearing RHF Chrome Steel 10249mm for High Precision

Large Image : 51100 Single Row Thrust Ball Bearing RHF Chrome Steel 10*24*9mm for High Precision

Product Details:

Place of Origin:	Shandong, China
Brand Name:	RHF
Model Number:	51100

Payment & Shipping Terms:

Minimum Order Quantity:	100 sets
Price:	$0.51/sets 100-999 sets

Contact Now

51100 Single Row Thrust Ball Bearing RHF Chrome Steel 10249mm for High Precision

Description

Type:	BALL, Ball	Structure:	Thrust, Thrust
Applicable Industries:	Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Construction Works , Energy & Mining, Other	Precision Rating:	P0 P2 P4 P5 P6
Seals Type:	Open	Number Of Row:	Single Row
Material:	Chrome Steel GCr15	Cage Material:	Steel/ Copper/ Nylon
Lubrication:	Grease Or Oil Lubricated	Size:	10249mm
Weight:	0.02kg	Service:	Grease Or Oil Lubricated
Feature:	Long Life Low Noise	Warranty:	1 Year

Product Description

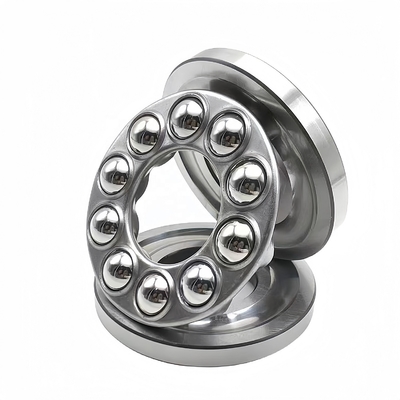

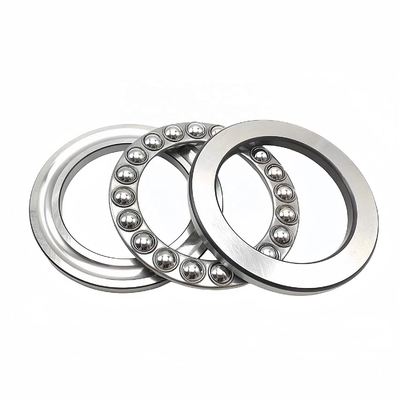

The unidirectional thrust ball bearing comprises a shaft ring, a seat ring and a ball-cage assembly. It can be separated and the shaft ring, seat ring, ball-cage assembly can be installed separately. Unidirectional thrust ball bearings can withstand the axial load in a single direction and can be positioned in a single direction, but must not bear any radial load.

Product Parameters

Dimensions(mm)					Basic Load Rating(kn)			Speed(r/min)	Weight(kg)	Model
d	D	B	dynamic	static	reference	reference				Model
3	8	3.5	0.85	0.77	36000	0.003	BA3
4	10	4	1.25	1.2	30000	0.003	BA4
5	12	4	1.43	1.6	28000	0.004	BA5
6	14	5	1.99	2.28	24000	0.004	BA6
7	17	6	2.6	3.1	19000	0.005	BA7
8	19	7	3.32	4.05	17000	0.007	BA8
9	20	7	3.51	4.55	16000	0.01	BA9
10	24	9	9.95	15.3	13000	0.02	51100
10		26	11	12.7	18.6	11000	0.03	51200
12	26	9	10.4	16.6	13000	0.022	51101
12		28	11	13.3	20.8	11000	0.034	51201
15	28	9	9.36	15.3	12000	0.023	51102
15		32	12	16.5	27	10000	0.046	51202
17	30	9	9.75	16.6	12000	0.025	51103
17		35	12	17.2	30	9500	0.053	51203
20	35	10	13.5	25	10000	0.037	51104
20		40	14	22.5	40.5	8000	0.083	51204
25	42	11	15.9	31.5	9000	0.056	51105
		47	15	27.6	55	7500	0.11	51205
		52	18	34.5	60	6300	0.17	51305
		60	24	55.3	96.5	5000	0.34	51405
30	47	11	16.8	36	8500	0.063	51106
		52	16	25.5	51	6700	0.13	51206
		60	21	37.7	71	5300	0.26	51306
		70	28	72.8	137	4300	0.52	51406

FAQ Q:Are you trading company or manufacturer? --We are the company dealing in trading business and manufacturing business. Q:What’s the MOQ? --There is no MOQ for sample orders. It's generally 300pcs for custom products and can be negotiated according to the unit price of the product. Q:How long is the lead time? --Generally, the lead time for sample orders is 1-3 days, for bulk orders is in 3-15 days. It’s depends on the quantity of the order. Q:Do you offer free samples? --If you place an order, we can return part of sample fee even all of fee to you. It also depends on the quantity of order and the type of sample. And you just need to pay freight. Q: Could you customized for me? --Sure,we can supply OEM service as per your drawing or samples.
