23126 23128 23130 23132 23134 23136 Spherical Roller Bearing for Your Requirement

Large Image : 23126 23128 23130 23132 23134 23136 Spherical Roller Bearing for Your Requirement

Product Details:

Place of Origin:	Shandong, China
Brand Name:	RHF
Model Number:	23126

Payment & Shipping Terms:

Minimum Order Quantity:	100 sets
Price:	$22.29/sets 100-999 sets

Contact Now

23126 23128 23130 23132 23134 23136 Spherical Roller Bearing for Your Requirement

Description

Type:	Roller, Roller	Structure:	Spherical, Spherical
Applicable Industries:	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Construction Works , Energy & Mining, Other	Precision Rating:	P0 P2 P4 P5 P6
Seals Type:	OPEN	Number Of Row:	Single Row
Material:	Chrome Steel GCr15	Cage Material:	Steel/ Copper/ Nylon
Vibration:	Z1V1 Z2V2 Z3V3	Size:	Standard Size
Weight:	8.8kg	Application:	Automotive.tractor.construction Machinery.rolling Mill
Service:	OEM Customized Services	Warranty:	1 Year

Features

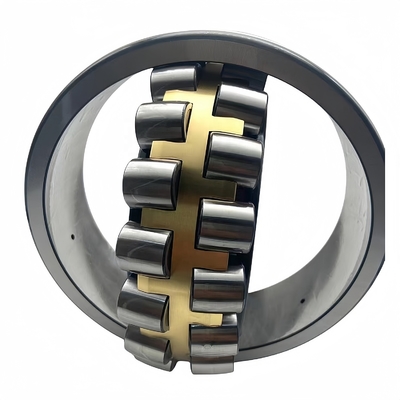

Spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis. And its features:

1.Accommodate misalignment
Spherical roller bearings are self-aligning like self-aligning ball bearings or CARB bearings.
2.High load carrying capacity

Spherical roller bearings are designed to accommodate both heavy radial loads and axial loads in both directions.
3.Long service life
The rollers are manufactured to such tight dimensional and geometrical tolerances that they are practically identical in a roller set. The symmetrical rollers self-adjust, providing optimal load distribution along the roller length and together with the special profile prevent stress peaks at the roller ends.
4.Low friction
Self-guiding rollers keep friction and frictional heat at low levels ( fig. 5 ). A floating guide ring guides unloaded rollers so that they enter the load zone in the optimal position.

Product Display

Specifications

Series	23126CA/W33 CAK/W33
d Bore	130mm
D - Cup Outer Diameter	210mm
B - Cone Width	64mm
Bearing Weight	8.8kg

Product Parameters

Dimensions(mm)					Basic Load Rating(kn)			Speed(r/min)	Weight(kg)	Model (Cylindrical Bore)	Model (Tapered Bore)
d	D	B	dynamic	static	reference	reference				Model (Cylindrical Bore)	Model (Tapered Bore)
130	210	64	560	780	2400	8.8	23126CA/W33	23126CAK/W33
140	225	68	630	900	2200	10.5	23128CA/W33	23128CAK/W33
150	250	80	830	1200	2000	16	23130CA/W33	23130CAK/W33
160	270	86	980	1370	1900	20.5	23132CA/W33	23132CAK/W33
170	280	88	1040	1500	1800	22	23134CA/W33	23134CAK/W33
180	300	96	1200	1760	1700	28	23136CA/W33	23136CAK/W33
