Spherical Roller Bearing 23218 23120 24120 23220 24022 23122 24122 23222 CC/W33 CCK/W33

Large Image : Spherical Roller Bearing 23218 23120 24120 23220 24022 23122 24122 23222 CC/W33 CCK/W33

Product Details:

Place of Origin:	Shandong, China
Brand Name:	RHF
Model Number:	23218

Payment & Shipping Terms:

Minimum Order Quantity:	100 sets
Price:	$12.00/sets 100-999 sets

Contact Now

Spherical Roller Bearing 23218 23120 24120 23220 24022 23122 24122 23222 CC/W33 CCK/W33

Description

Type:	Roller, Roller	Structure:	Spherical, Spherical
Applicable Industries:	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Construction Works , Energy & Mining, Other	Precision Rating:	P0 P2 P4 P5 P6
Seals Type:	OPEN	Number Of Row:	Single Row
Material:	Chrome Steel GCr15	Cage Material:	Steel/ Copper/ Nylon
Vibration:	Z1V1 Z2V2 Z3V3	Size:	Standard Size
Weight:	4.65kg	Application:	Automotive.tractor.construction Machinery.rolling Mill
Service:	OEM Customized Services	Warranty:	1 Year

Features

Spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis. And its features:

1.Accommodate misalignment
Spherical roller bearings are self-aligning like self-aligning ball bearings or CARB bearings.
2.High load carrying capacity

Spherical roller bearings are designed to accommodate both heavy radial loads and axial loads in both directions.
3.Long service life
The rollers are manufactured to such tight dimensional and geometrical tolerances that they are practically identical in a roller set. The symmetrical rollers self-adjust, providing optimal load distribution along the roller length and together with the special profile prevent stress peaks at the roller ends.
4.Low friction
Self-guiding rollers keep friction and frictional heat at low levels ( fig. 5 ). A floating guide ring guides unloaded rollers so that they enter the load zone in the optimal position.

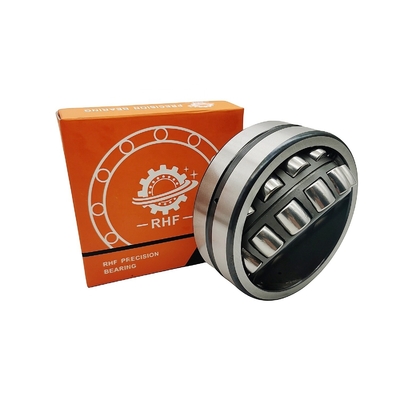

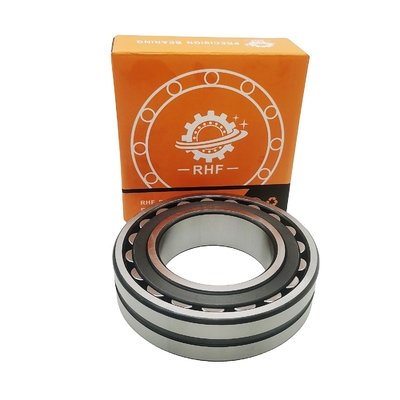

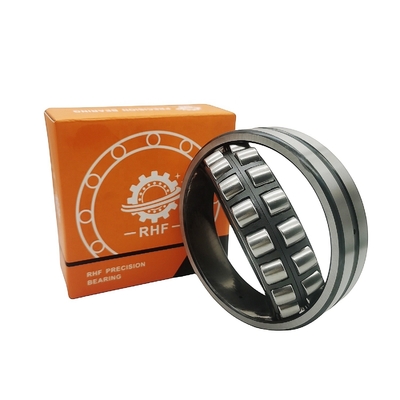

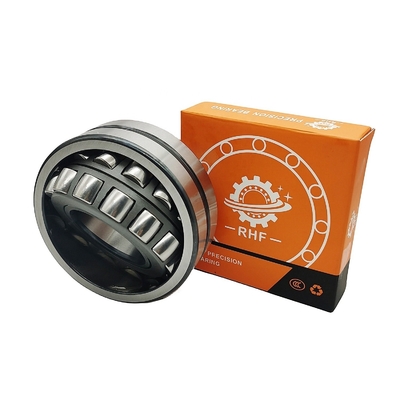

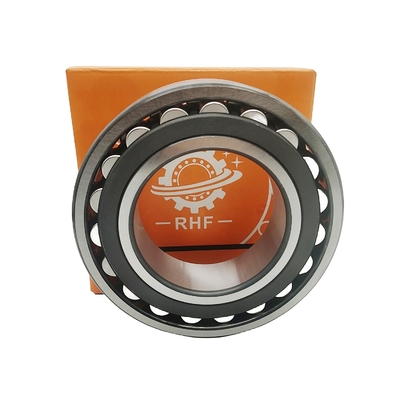

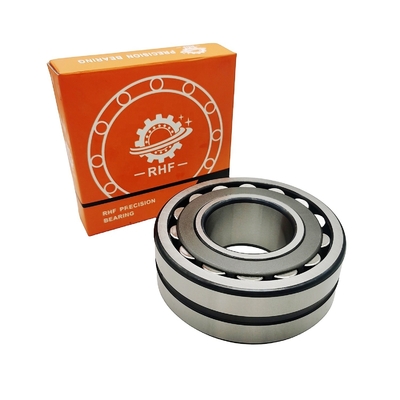

Product Display

Specifications

Series	23218 CC/W33 CCK/W33
d Bore	90mm
D - Cup Outer Diameter	160mm
B - Cone Width	52.4mm
Bearing Weight	4.65kg

Product Parameters

Dimensions(mm)					Basic Load Rating(kn)			Speed(r/min)	Weight(kg)	Model (Cylindrical Bore)	Model (Tapered Bore)
d	D	B	dynamic	static	reference	reference				Model (Cylindrical Bore)	Model (Tapered Bore)
90	160	52.4	355	440	3800	4.65	23218CC/W33	23218CCK/W33
100	165	52	365	490	3000	4.55	23120CC/W33	23120CCK/W33
		165	65	455	640	3200	5.65	24120CC/W33	24120CCK/W33
		180	60.3	475	600	2400	6.85	23220CC/W33	23220CCK/W33
110	170	60	415	620	2400	5	24022CC/W33	24022CCK/W33
		180	56	430	585	2800	5.75	23122CC/W33	23122CCK/W33
		180	69	520	750	2200	7.1	24122CC/W33	24122CCK/W33
		200	69.8	600	765	2200	9.85	23222CC/W33	23222CCK/W33
