22205 22206 22207 22208 22209 22210 22211 22212 22213 22214 Spherical Roller Bearing

Large Image : 22205 22206 22207 22208 22209 22210 22211 22212 22213 22214 Spherical Roller Bearing

Product Details:

Place of Origin:	Shandong, China
Brand Name:	RHF
Model Number:	22205

Payment & Shipping Terms:

Minimum Order Quantity:	100 sets
Price:	$12.04/sets 100-999 sets

Contact Now

22205 22206 22207 22208 22209 22210 22211 22212 22213 22214 Spherical Roller Bearing

Description

Type:	Roller, Roller	Structure:	Spherical, Spherical
Applicable Industries:	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Construction Works , Energy & Mining, Other	Precision Rating:	P0 P2 P4 P5 P6
Seals Type:	OPEN	Number Of Row:	Single Row
Material:	Chrome Steel GCr15	Cage Material:	Steel/ Copper/ Nylon
Vibration:	Z1V1 Z2V2 Z3V3	Size:	Standard Size
Weight:	0.26kg	Application:	Automotive.tractor.construction Machinery.rolling Mill
Service:	OEM Customized Services	Warranty:	1 Year

Features

Spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis. And its features:

1.Accommodate misalignment
Spherical roller bearings are self-aligning like self-aligning ball bearings or CARB bearings.
2.High load carrying capacity

Spherical roller bearings are designed to accommodate both heavy radial loads and axial loads in both directions.
3.Long service life
The rollers are manufactured to such tight dimensional and geometrical tolerances that they are practically identical in a roller set. The symmetrical rollers self-adjust, providing optimal load distribution along the roller length and together with the special profile prevent stress peaks at the roller ends.
4.Low friction
Self-guiding rollers keep friction and frictional heat at low levels ( fig. 5 ). A floating guide ring guides unloaded rollers so that they enter the load zone in the optimal position.

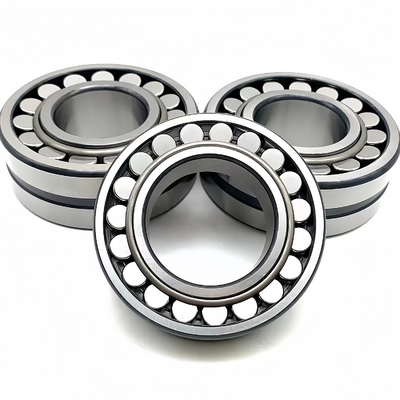

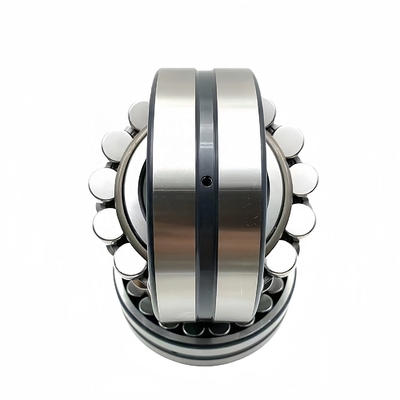

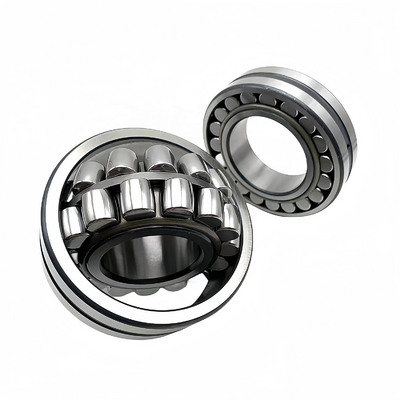

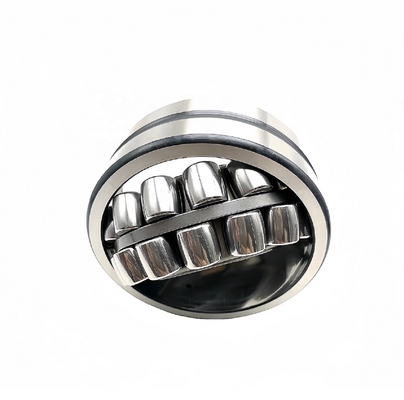

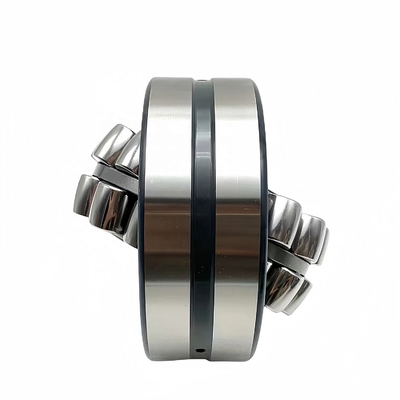

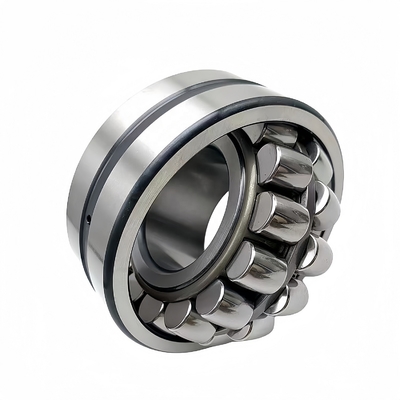

Product Display

Specifications

Series	22205-22214 E/EK
d Bore	20-70mm
D - Cup Outer Diameter	52-125mm
B - Cone Width	18-31mm
Bearing Weight	0.26-1.55kg

Product Parameters

Dimensions(mm)					Basic Load Rating(kn)			Speed(r/min)	Weight(kg)	Model
d	D	B	dynamic	static	reference	reference				Model
20	52	18	49	44	13000	0.28	22205/20E
25	52	18	49	44	13000	0.26	22205E/EK
30	62	20	64	60	10000	0.29	22206E/EK
35	72	23	86.5	85	9000	0.45	22207E/EK
40	80	23	96.5	90	8000	0.53	22208E/EK
45	85	23	102	98	7500	0.58	22209E/EK
50	90	23	104	108	7000	0.63	22210E/EK
55	100	25	125	127	6300	0.84	22211E/EK
60	110	28	156	166	5600	1.15	22212E/EK
65	120	31	193	216	5000	1.55	22213E/EK
70	125	31	208	228	5000	1.55	22214E/EK
