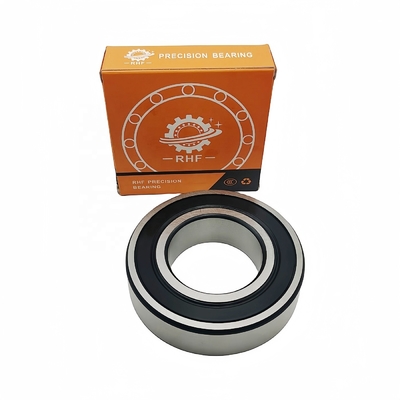

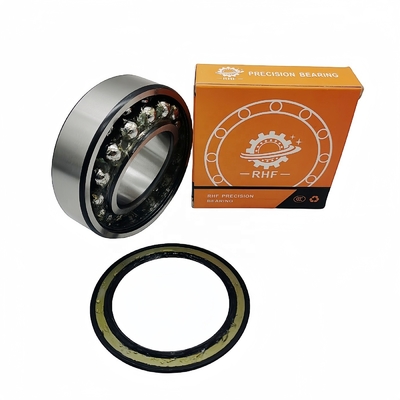

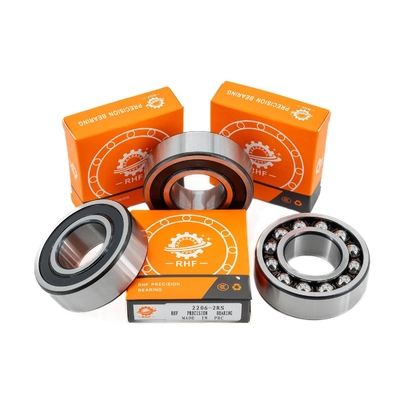

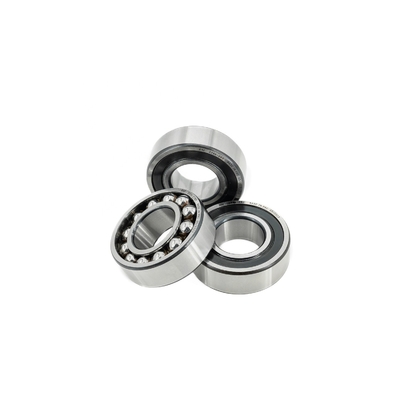

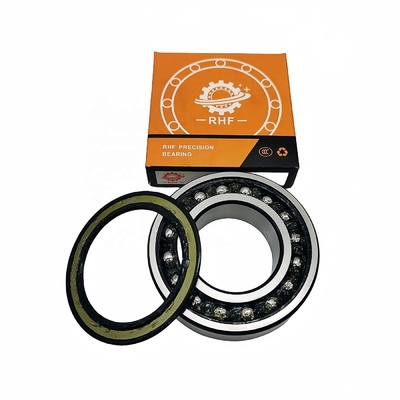

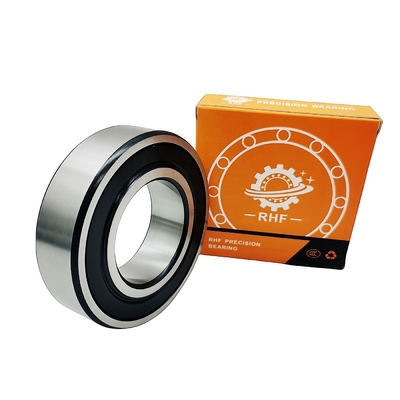

Standard Size Double Row Ball Bearing 2200-2RS 2204-2RS 2214-2RS 2300-2RS 2306-2RS 2310-2RS

Large Image : Standard Size Double Row Ball Bearing 2200-2RS 2204-2RS 2214-2RS 2300-2RS 2306-2RS 2310-2RS

Product Details:

Place of Origin:	Shandong, China
Brand Name:	RHF
Model Number:	2200-2214-2RS/2300-2310-2RS

Payment & Shipping Terms:

Minimum Order Quantity:	100 sets
Price:	$23.86/sets 100-999 sets
Packaging Details:	1.Single wooden case+Pallet<br>2.Plastic Sleeve Packing+Carton+Pallet<br>3.Single Box+Cartons+Pallet<br>4.As customer request

Contact Now

Standard Size Double Row Ball Bearing 2200-2RS 2204-2RS 2214-2RS 2300-2RS 2306-2RS 2310-2RS

Description

Type:	Roller, Ball	Structure:	Spherical
Applicable Industries:	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Construction Works , Energy & Mining, Other	Precision Rating:	P0 P2 P4 P5 P6
Seals Type:	OPEN	Number Of Row:	Double Row, Double
Material:	Chrome Steel GCr15	Cage Material:	Steel/ Copper/ Nylon
Lubrication:	Grease Or Oil Lubricated	Feature:	Long Life Low Noise
Service:	OEM Customized Services	Size:	Standard Size
Weight:	0.048-1.65kg	Warranty:	1 Year

Product Description

In a self-aligning bearing, the inner ring has two raceways and the outer ring has a single spherical raceway with its center of
curvature coincident with the bearing axis. Self-Aligning Double Row Ball Bearings are designed to work in applications where
severe misalignment exists whether from mounting or shaft deflection. The concave raceway of the outer ring in combination with
two rows of balls operate over a wide range of contact angles.

Cage Material Types: Iron Cage/ M Brass Cage/ TN-9 Nylon Cage

Dimensions(mm)					Basic Load Rating(kn)			Speed(r/min)	Weight(kg)	Model
d	D	B	dynamic	static	reference	reference				Model
10	30	14	5.53	1.18	17000	0.048	2200E-2RS1TN9
12	32	14	6.24	1.43	16000	0.053	2201E-2RS1TN9
15	35	14	7.41	1.76	14000	0.058	2202E-2RS1TN9
15		42	17	10.8	2.6	12000	0.11	2302E-2RS1TN9
17	40	16	8.84	2.2	12000	0.089	2203E-2RS1TN9
17		47	19	12.7	3.4	11000	0.16	2303E-2RS1TN9
20	47	18	12.7	3.4	10000	0.14	2204E-2RS1TN9
20		52	21	14.3	4	9000	0.21	2304E-2RS1TN9
25	52	18	14.3	4	9000	0.16	2205E-2RS1TN9
25		62	24	19	5.4	7500	0.34	2305E-2RS1TN9
30	62	20	15.6	4.65	7500	0.26	2206E-2RS1TN9
30		72	27	22.5	6.8	6700	0.51	2306E-2RS1TN9
35	72	23	19	6	6300	0.41	2207E-2RS1TN9
35		80	31	26.5	8.5	5600	0.7	2307E-2RS1TN9
40	80	23	19.9	6.95	5600	0.5	2208E-2RS1TN9
40		90	33	33.8	11.2	5000	0.96	2308E-2RS1TN9
45	85	23	22.9	7.8	5300	0.53	2209E-2RS1TN9
45		100	36	39	13.4	4500	1.3	2309E-2RS1TN9
50	90	23	22.9	8.15	4800	0.57	2210E-2RS1TN9
50		110	40	43.6	14	4000	1.65	2310E-2RS1TN9
55	100	25	27.6	10.6	4300	0.79	2311E-2RS1TN9
60	110	28	31.2	12.2	3800	1.05	2312E-2RS1TN9
65	120	31	35.1	14	3600	1.4	2313E-2RS1TN9
70	125	31	35.8	14.6	3400	1.45	2314E-2RS1TN9
